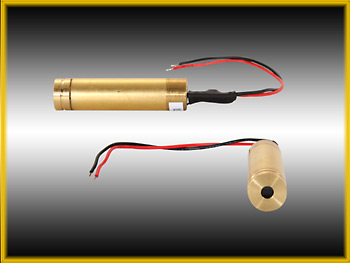

DPSS-5B-CH, 12 mm Green Laser - Crosshair

Z-Bolt® Certified Power, Projects a 10° Angled Green Crossed Line

X & Y Axis - 50x50cm @ 3M
FDA Certified 4.0 ~ 5.0 mW Output

The DPSS-5B-CH generates a 10° angle crossed line / crosshair pattern (50x50cm @ 3M) and is factory tested and tuned to lase at a guaranteed output of 4.0 to 5.0 mW. Projects a brilliant, visible line instead of dot. The brightest module available for consumer, retail public use. Economically priced for lab experimentation; as a component in new product designs; for the laser professional or hobbyist.

Guaranteed Z-Bolt® "plus" Power !

Our Z-Bolt® "plus" selection of green laser modules push the power envelope and are the brightest, most visible green laser modules allowed by FDA law. Each Z-Bolt® "plus" power green module is factory tuned and tested on a laser power meter. These "plus" power units are rated at 4.0 to 5.0 mW power output and are 2 to 3 times brighter than stock Class IIIa units ( 1.5 ~ 4.0 mW ). The result is dazzling, green laser brilliance. Guaranteed !

Specifications Document:

DPSS-5L Green Laser Diode Assembly

Wholesale Lots of 5 pcs
APC Circuit, Heat Sink

The DPSS-5B-CH sold in Lots of 5 pcs - individually packaged in static free enclosures; bubble wrapped with Laser Power Meter Report (confirming Z-Bolt® Certified Power), and referencing specific serial numbers of each individual module. Requires 3 V AC or DC power supply (not included). Add the HS-1a Heat Sink for constant on use to mitigate overheating. Heat Sinks sold 1 pc per order, not lots.

Single Unit Purchases?

Need to Purchase 1 - 4 ea pcs for Demo Testing, Evaluation, Etc? Choose DPSS-5B-CH-Single below.
Select A Product - See Matching Photo Gallery 1 - 4 5 +
DPSS-5B-CH, Cross Line Generator, 1 Lot = 5 pcs $175 ($35 pc) $145 ($29 pc)
DPSS-5B-CH-Single, Cross Line Generator, 1 pc (Single) $39
Product Specifications
  • Module Generates Crossed Line, Not Dot
  • 50X50cm Crosshair Pattern @ 3 Meters
  • 100 mm Pigtail Leads for Power Supply
  • Add Heat Sink for Extended Length Operation
  • Wavelength (Color) - 532 nm (Green)
  • Output Power - Z-Bolt® Certified 4.0 ~ 5.0 mW
  • Output Mode - Constant Wave
  • Crosshair Pattern - 50X50cm Crosshair Pattern @ 3 Meters
  • Diode Circuit Type - Computerized APC
  • Optimum Operating Temp - 15C° ~ 35C°
  • Operating Voltage - 3VDC
  • Current Draw - < 300 mA
  • FDA Safety Class - Class IIIa / ANSI 3R
  • Product Warranty - 1 Year
