DPSS-5L-ADJ, 12 mm Adjustable Laser Line Generator

Z-Bolt® Certified Power, 60° Fanned Green Laser Line

Adjustable Laser Line Generator -
FDA Certified 4.0 ~ 5.0 mW Output

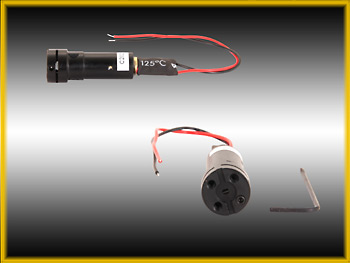

The DPSS-5L-ADJ generates a 60° Fanned Line and is factory tested and tuned to lase at a guaranteed output of 4.0 to 5.0 mW. Projects a brilliant, visible line instead of dot. Use the hex key (included) to adjust laser line position. Economically priced for lab experimentation; as a component in new product designs; for the laser professional or hobbyist.

Guaranteed Z-Bolt® Certified Power!

Our Z-Bolt® Certified selection of green laser modules push the power envelope and are the brightest, most visible green laser modules allowed by FDA law. Each Z-Bolt® Certified power green module is factory tuned and tested on a laser power meter. These Certified power units are rated at 4.0 to 5.0 mW power output and are 2 to 3 times brighter than stock Class IIIa units ( 1.5 ~ 4.0 mW ). The result is dazzling, green laser brilliance. Guaranteed !

Specifications Document:

DPSS-5L-ADJ Green Laser Diode Assembly

Wholesale Lots of 5 pcs
APC Circuit, Heat Sink

The DPSS-5L-ADJ sold in Lots of 5 pcs - individually packaged in static free enclosures; bubble wrapped with Laser Power Meter Report (confirming Z-Bolt® Certified Power), and referencing specific serial numbers of each individual module. Requires 3 V AC or DC power supply (not included).

Single Unit Purchases?

Need to Purchase 1 - 4 ea pcs for Demo Testing, Evaluation, Etc? Choose DPSS-5L-ADJ-Single below.
Select A Product - See Matching Photo Gallery 1 - 4 5 +
DPSS-5L-ADJ, Adjustable Line Generator, 1 Lot = 5 pcs $195 ($39 pc) $175 ($35 pc)
DPSS-5L-ADJ-Single, Adjustable Line Generator, 1 pc (Single) $39
Product Specifications
  • Module Generates 60° Fanned Line, Not Dot
  • Adjustable - Change Line Position
    (Relative to Outside Casing)
    Hey Key Adjuster Included
  • 100 mm Pigtail Leads for Power Supply
  • Wavelength (Color) - 532 nm (Green)
  • Output Power - Z-Bolt® Certified 4.0 ~ 5.0 mW
  • Output Mode - Constant Wave
  • Line Width at Source - 1.5 mm (Adjustable)
  • Diode Circuit Type - Computerized APC
  • Optimum Operating Temp - 15C° ~ 35C°
  • Operating Voltage - 3VDC
  • Current Draw - < 300 mA
  • FDA Safety Class - Class IIIa / ANSI 3R
  • Product Warranty - 1 Year
